In the landscape design of residential gardens, commercial plazas and municipal streets, tree protection is not merely a matter of aesthetic detail; it is a crucial element in ensuring the long-term survival of trees and enhancing the safety and refinement of the site.

Weathering steel, with its distinctive vintage rusted finish and exceptional outdoor weather resistance, has become the mainstream material for tree pit protection in contemporary landscaping.

The vast majority of designers and property owners face a crucial decision: should they opt for corten steel tree surrounds or weathering steel tree grates?

These two products differ entirely in terms of function, application scenarios and suitability for different environments. Choosing the wrong type can, at best, result in a cluttered landscape and cumbersome maintenance; at worst, it can lead to soil compaction, root rot in trees and tripping hazards on pavements.

This article will provide a comprehensive comparison of the two products across various dimensions—including product definitions, functional advantages, suitable applications, drainage and aeration, safety standards, and construction and maintenance costs—to help you make the right choice for residential, commercial and municipal projects.





Quick Answer: Which One Should You Choose?



What Is a Corten Steel Tree Ring?

1. Basic Product Definition

A Corten steel tree ring is an open-frame edging installed around the base of a tree pit. Its primary function is to define the boundaries of the tree pit and protect the tree trunk, whilst fully preserving the exposed state of the soil and mulch, without obstructing the growth space of the greenery.

Unlike standard wrought-iron edging, weathering steel tree rings are specifically designed for long-term outdoor use. They naturally develop a dense, rust-resistant patina, eliminating the need for frequent repainting or maintenance, whilst their texture becomes increasingly vintage and sophisticated over time.

2. Main Product Styles

There is a wide variety of Corten tree surrounds available on the market, suitable for both newly planted trees and mature trees, offering exceptional flexibility in installation:

• One-piece tree surround: Pre-fabricated in a circular shape, suitable for standard saplings, with quick and convenient installation.
• Two-piece interlocking tree surround: A split-design that can be slipped directly over the exterior of a mature tree trunk, eliminating the need to transplant the tree.
• Multi-segment modular tree surrounds: A structure comprising multiple curved segments that can be freely adjusted in diameter to accommodate the growth and expansion needs of mature trees.
• Tree surrounds with ground spikes: Equipped with pre-embedded steel spikes at the base, eliminating the need for additional piling whilst ensuring stable, wobble-free fixation.
• Tree surrounds with fixing plates: Designed for use with installation fixing plates, they can be secured with bolts and are suitable for installation around hard surfaces.

3. Structural and Aesthetic Characteristics

Corten garden tree rings typically have a clearance height of 20–50 mm and feature clean, crisp lines. They clearly demarcate the boundaries between the tree pit and the lawn or footpaths without appearing overly conspicuous.

The open structure does not obstruct the soil, allowing rainwater and air to permeate the root system naturally, making them a perfect fit for natural, rustic and minimalist garden landscapes.

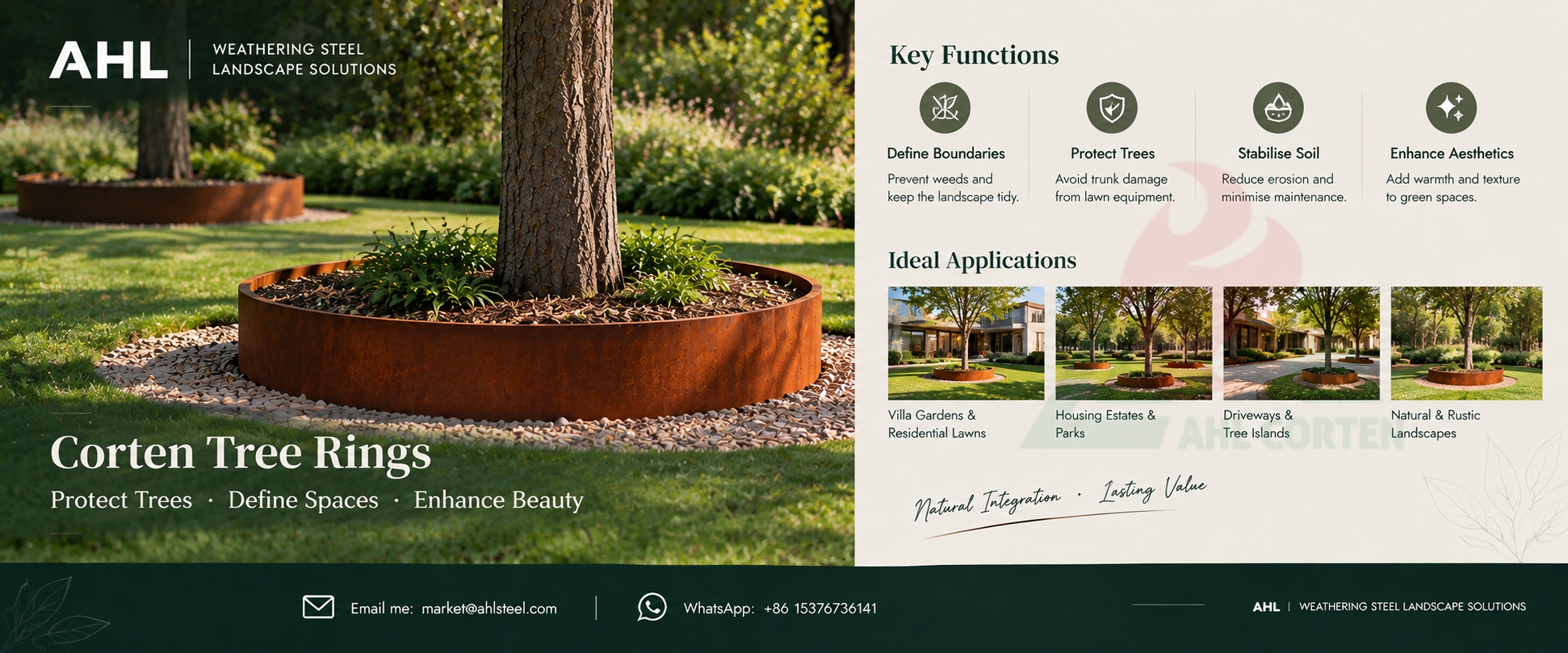

Core Functions and Applications of Corten Tree Rings

1. Core Practical Functions

Firstly, they precisely define the boundaries of the tree pit. This completely prevents weeds from the lawn from spreading into the tree pit and stops bark, decorative stones and humus from spilling out, ensuring the garden landscape remains neat and tidy.

Secondly, they protect the tree trunk from damage. By forming a physical barrier, they effectively prevent the trunk from being struck by lawnmowers or trimmers during operation, thereby preventing bark damage that could lead to pests and diseases.

Thirdly, it stabilises the landscaping substrate. It firmly secures the humus, bark and gravel within the tree pit, reducing soil erosion caused by rainwater runoff and minimising the burden of routine maintenance.

Fourthly, it enhances the aesthetic quality of the landscape. The warm, rust-coloured patina of weathering steel adds depth to greenery and lawns, creating refined lines in the garden landscape.

2. Ideal Applications

Steel garden rings are designed for open, soft-landscaped spaces and are best suited to low-traffic, aesthetically-focused landscape areas:
Private villa gardens, residential lawns, and courtyard planting areas
Low-traffic green spaces in housing estates, and tree pits in open parkland
Tree islands along garden driveways, and natural, rustic landscape projects
Landscape areas where greenery and landscaping are the primary focus and where there is minimal pedestrian traffic




What Is a Corten Steel Tree Grille?

1. Basic Product Definition

A weathering steel tree grille (also known as a tree pit grille) is a perforated metal panel system designed for use with paved surfaces, specifically for hardening tree pits. The product covers the surface of the tree pit, creating a level, passable surface whilst preserving space for tree growth.
Corten tree pit covers are a specialised municipal landscaping product designed to address issues such as ‘street trees encroaching on pavements, uneven road surfaces, and exposed, unsightly soil’; it is a standard feature of urban hardscape design.

2. Core Structural Design



• Outer load-bearing frame: This bears the weight of pedestrians and light vehicles, transferring pressure to the surrounding paved surface without compressing the soil around the tree roots.
• Central Trunk Opening: Appropriately sized openings are provided to accommodate the growth of the tree trunk, preventing damage to the tree caused by long-term compression leading to ring barking.
• Modular Perforated Panels: Featuring radial, geometric and laser-engraved perforated designs, these panels ensure both air permeability and drainage whilst providing trip-proof safety.
• Removable structure: Some models feature removable panels, facilitating future tree maintenance, root inspections and cleaning of the tree pit.

3. Key Engineering Advantages

Installed flush with the surrounding pavement, eliminating any level differences. The perforated structure ensures the tree can breathe and water can permeate, whilst maintaining continuous pedestrian access, striking a perfect balance between landscaping, tree maintenance and pedestrian safety.

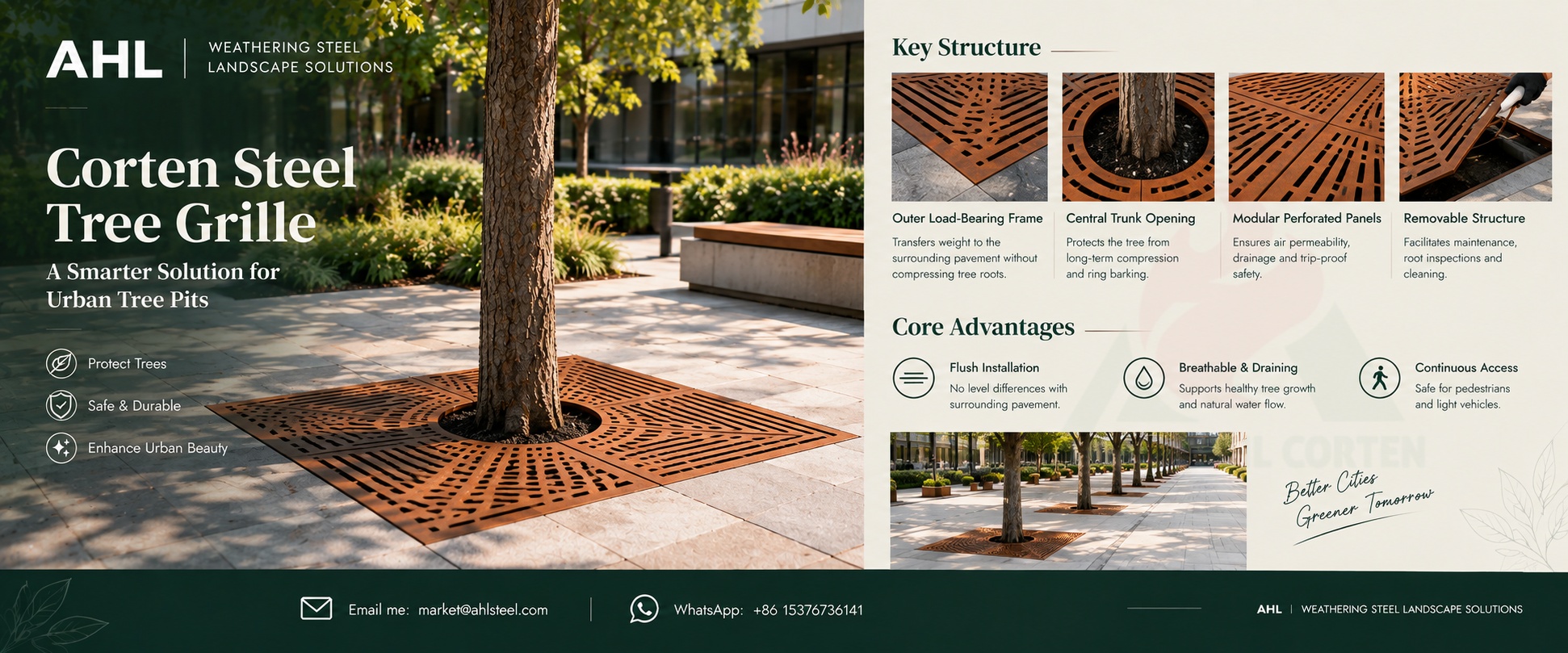

Core Functions and Applications of Corten Tree Grates

Core Practical Functions

Firstly, it eliminates safety hazards for pedestrians. By levelling out the depression in the tree pit, it prevents pedestrians from tripping and wheelchairs from getting stuck, complying with accessibility standards.

Secondly, it prevents soil compaction. By isolating the tree roots from the pressure of foot traffic, it prevents the soil around the roots from becoming compacted, ensuring soil aeration and protecting the tree’s root system.

Thirdly, they optimise the tree pit ecosystem. Precisely perforated openings allow for rapid rainwater infiltration and free air circulation, whilst preventing large pieces of litter and fallen leaves from entering the tree pit.

Fourthly, they enhance the urban landscape. By concealing exposed soil and unifying the paving surface, they ensure streets and squares appear clean and tidy, thereby elevating the overall aesthetic appeal of the site.

Ideal Applications

Street tree grates are primarily designed for paved, high-footfall public areas and are the

First Choice for:

Municipal pavement and tree pits along streets
Tree pits at the entrances to commercial plazas, shopping centres, hotels and office buildings
Paved footpaths in parks, pedestrian streets and public landscape areas in front of transport hubs
Various mixed-use commercial and residential complexes, as well as municipal public hardscape areas

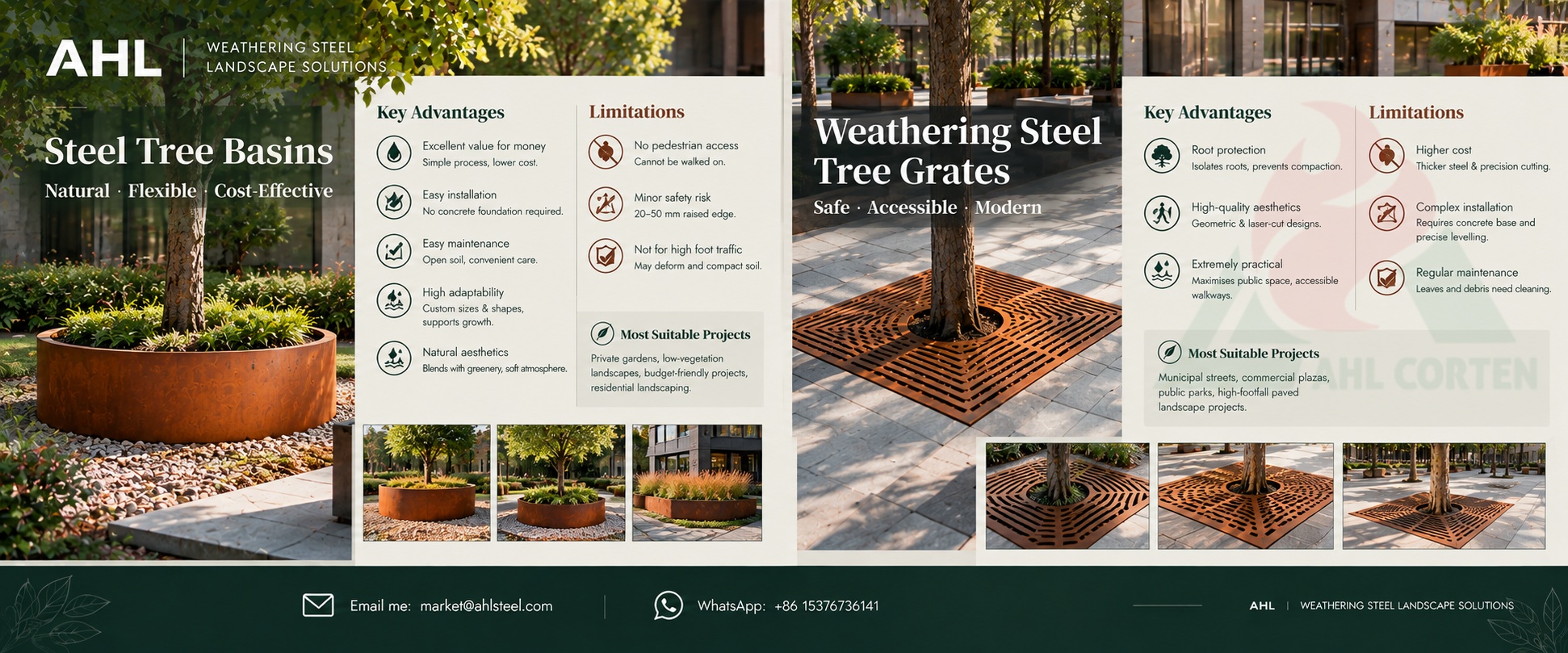

Tree Basins vs Tree Grates: A Comprehensive Comparison of Advantages, Disadvantages and Suitable Applications


Steel Tree Basins: Advantages and Limitations

1. Key Advantages

• Excellent value for money: Requires fewer materials and a simple manufacturing process; no complex foundation work is needed, resulting in lower costs.
• Easy installation: No concrete foundation required; installation is completed simply by joining the sections and securing them with nails.
• Easy maintenance: The soil in the tree pit is fully exposed, making weeding, loosening the soil, fertilising and replanting very convenient.
• High Adaptability: Dimensions and shape can be freely customised; supports future expansion to accommodate tree growth.
• Natural Aesthetics: The open design blends seamlessly with natural garden landscaping, creating a soft and sophisticated atmosphere.
• Limitations
• No Pedestrian Access: The tree pit area cannot be walked on and cannot serve as an extension of the footpath.
• Minor Safety Risk: The 20–50 mm raised edge may pose a tripping hazard if installed on main footpaths.
• Not Suitable for High-Frequency Foot Traffic: In areas with heavy footfall, the structure is prone to deformation from repeated trampling and cannot prevent soil compaction.

2. Most Suitable Projects

Private gardens, low-vegetation landscape areas, budget-friendly projects, and private residential landscaping projects emphasising natural landscaping.

Weathering Steel Tree Grates: Advantages and Limitations

Safe and Accessible: Flush with the ground surface, they support access for pedestrians, wheelchairs and pushchairs, and comply with municipal accessibility standards.

1. Key Advantages



• Effective Root Protection: The suspended load-bearing structure completely isolates the roots from foot traffic pressure, preventing soil compaction and root rot at the source.
• High-Quality, Neat Aesthetics: Geometric cut-out and laser-engraved designs suit modern, minimalist and formal municipal landscape styles.
• Extremely Practical: Maximises the use of public space by transforming tree pit areas into accessible walkways, ensuring no site area is wasted.

2. Limitations

• Higher Cost: Thick steel slabs, load-bearing frames and precision laser-cutting processes result in higher overall production costs.
• Complex Installation: Requires precise levelling, pre-embedded concrete bases and frame fixation, placing high demands on construction techniques.
• Regular Maintenance Required: Openwork gaps are prone to accumulating fallen leaves and litter, necessitating regular cleaning and unblocking of drainage holes.

3. Most Suitable Projects

Municipal streets, commercial plazas, public parks and high-footfall paved landscape projects.

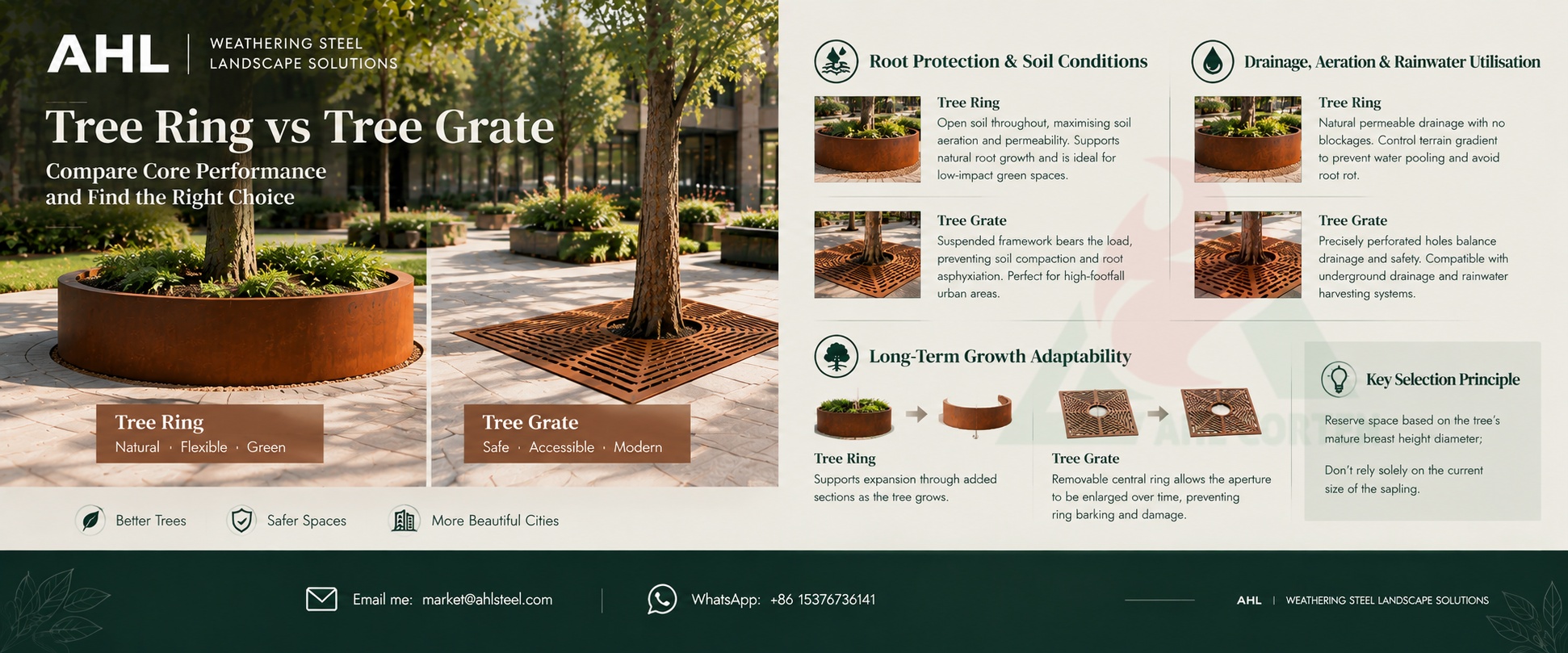

Comparison of Core Performance of Tree Ring and Tree Grille

1. Root Protection and Soil Conditions

• Tree Circumference: Open soil throughout, maximising soil aeration and permeability. Manual loosening, aeration and fertilisation are unimpeded, fully aligning with the natural growth patterns of trees and making it suitable for low-impact green spaces.
• Tree Grids: Rely on a suspended framework to bear the load, ensuring the soil is completely free from external compression. This perfectly addresses the issues of soil compaction and root asphyxiation in high-footfall urban areas, significantly improving the survival rate of street trees.

2. Drainage, Aeration and Rainwater Utilisation

• Tree Rings: Natural permeable drainage with no obstructions or blockages. Simply by controlling the terrain gradient appropriately to prevent water pooling in the tree pit, root rot caused by waterlogging can be avoided.
• Tree Grate: Precisely perforated holes are scientifically arranged to balance drainage efficiency with safety. It can be combined with underground drainage layers and permeable sub-bases, and is compatible with urban rainwater harvesting systems to achieve efficient rainwater infiltration.

3. Long-Term Growth Adaptability

Both products are designed to accommodate the long-term growth of trees. The tree ring supports expansion through the addition of sections, whilst the tree grate is fitted with a removable central ring, allowing the aperture to be gradually enlarged as the trunk thickens, thereby preventing ring barking and damage to the tree.
Core principles for selection: Space must be reserved based on the tree’s mature breast height diameter; one must not rely solely on the current dimensions of the sapling.

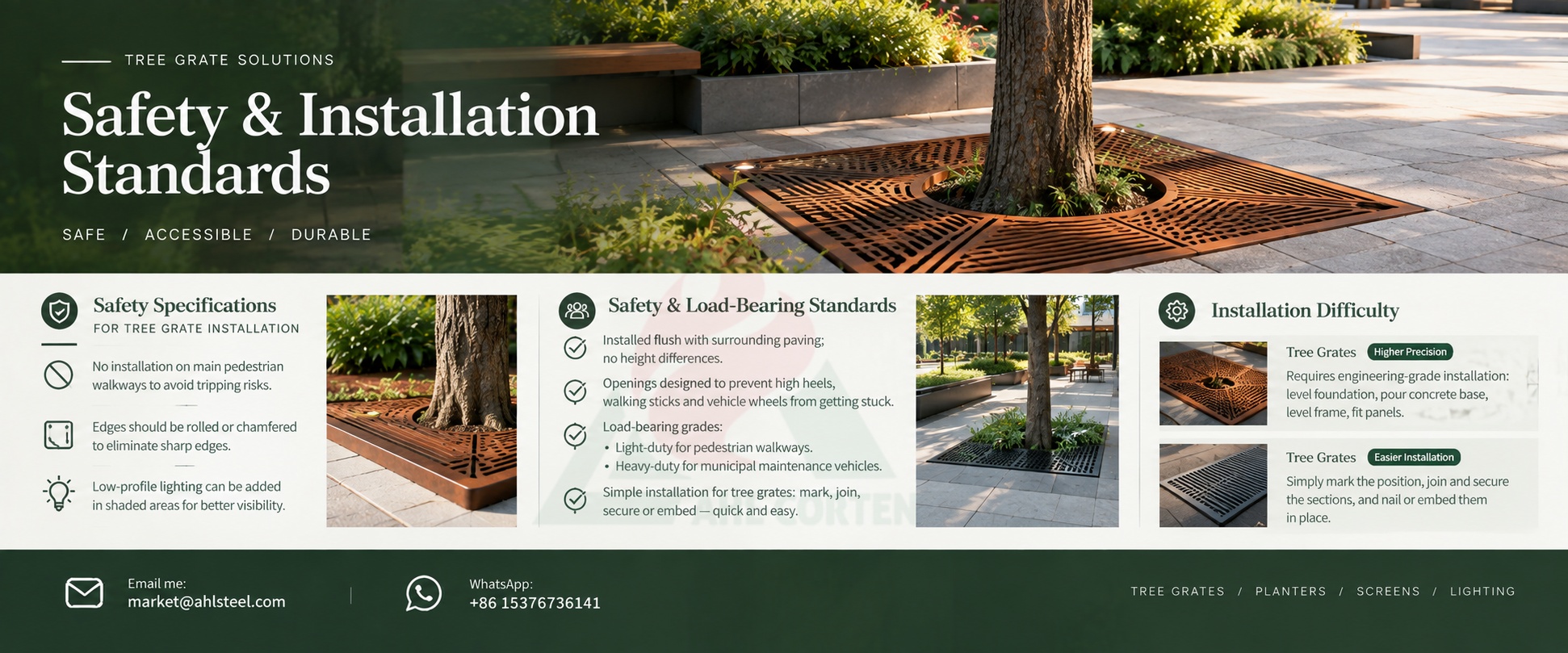

Safety Standards, Compatibility Specifications and Installation Differences

1. Safety Specifications for Tree Grate Installation

Installation on main pedestrian walkways is strictly prohibited to avoid the risk of tripping caused by raised edges.
Edges should be rolled or chamfered to eliminate sharp edges and enhance safety.
In low-light or shaded areas, low-profile ambient lighting may be installed to improve visibility at night.

2. Tree Grating Safety and Load-Bearing Standards

They must be installed completely flush with the surrounding paving, with no height differences, to meet accessibility requirements.
The width of the openings is scientifically designed to prevent high heels, walking sticks and vehicle wheels from becoming stuck, ensuring accessibility for all users.

Load-bearing grades: Light-duty pedestrian models are suitable for square walkways, whilst heavy-duty models can withstand the weight of municipal maintenance vehicles.

Tree Grates: Installation is extremely straightforward—simply mark out the position, join and secure the sections, and nail or embed them in place; this can be completed quickly by ordinary landscaping workers.

3. Differences in Installation Difficulty

Tree Grates: Requires precise, engineering-grade installation, involving levelling the foundation pit, pouring a concrete base, levelling the frame and fitting the panels; this demands extremely high precision.

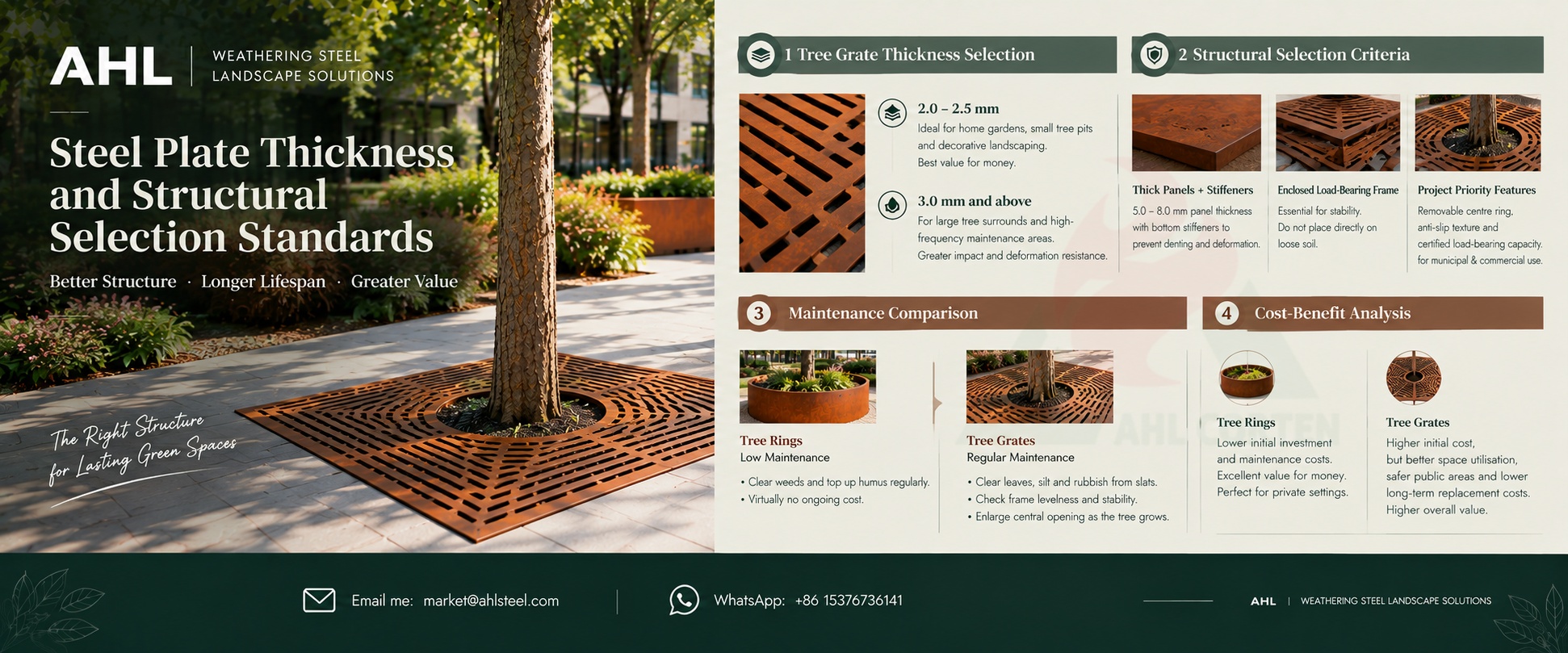

Steel Plate Thickness and Structural Selection Standards

1. Weathering Steel Tree Grate Thickness Selection

2.0–2.5 mm: Suitable for domestic gardens, small tree pits and purely decorative landscaping; offers the best value for money.
3.0 mm and above: For large-diameter tree surrounds and areas subject to frequent lawn maintenance; provides greater resistance to impact and deformation.

2. Structural Selection Criteria for Weathering Steel Tree Grates

Panel thickness of 5.0–8.0 mm, combined with bottom stiffeners to prevent the panel surface from denting or deforming under pressure.
A fully enclosed load-bearing frame is essential; placing the grate directly on loose soil is strictly prohibited to prevent settlement and tilting.
For municipal and commercial projects, priority should be given to models featuring a removable centre ring, anti-slip texture and engineering-certified load-bearing capacity.

Comparison of Maintenance Methods and Long-Term Cost-Benefit Analysis

1. Differences in Day-to-Day Maintenance

Tree-ring maintenance: Requires no special care; simply clear weeds and top up with humus regularly, at virtually no cost.

Tree grate maintenance: Requires regular clearing of fallen leaves, silt and rubbish from the open slats to prevent blockage of drainage holes; annual checks on the frame’s levelness and stability are necessary, and the central opening must be enlarged in a timely manner as the tree trunk grows.

2. Initial Cost and Long-Term Value

Tree rings require low initial investment and low maintenance costs, offering excellent value for money and perfectly suited to long-term use in private settings.

Tree grates involve a higher initial cost but enhance the utilisation of public spaces, prevent safety incidents and reduce the costs associated with tree mortality and replacement, resulting in higher overall long-term value.

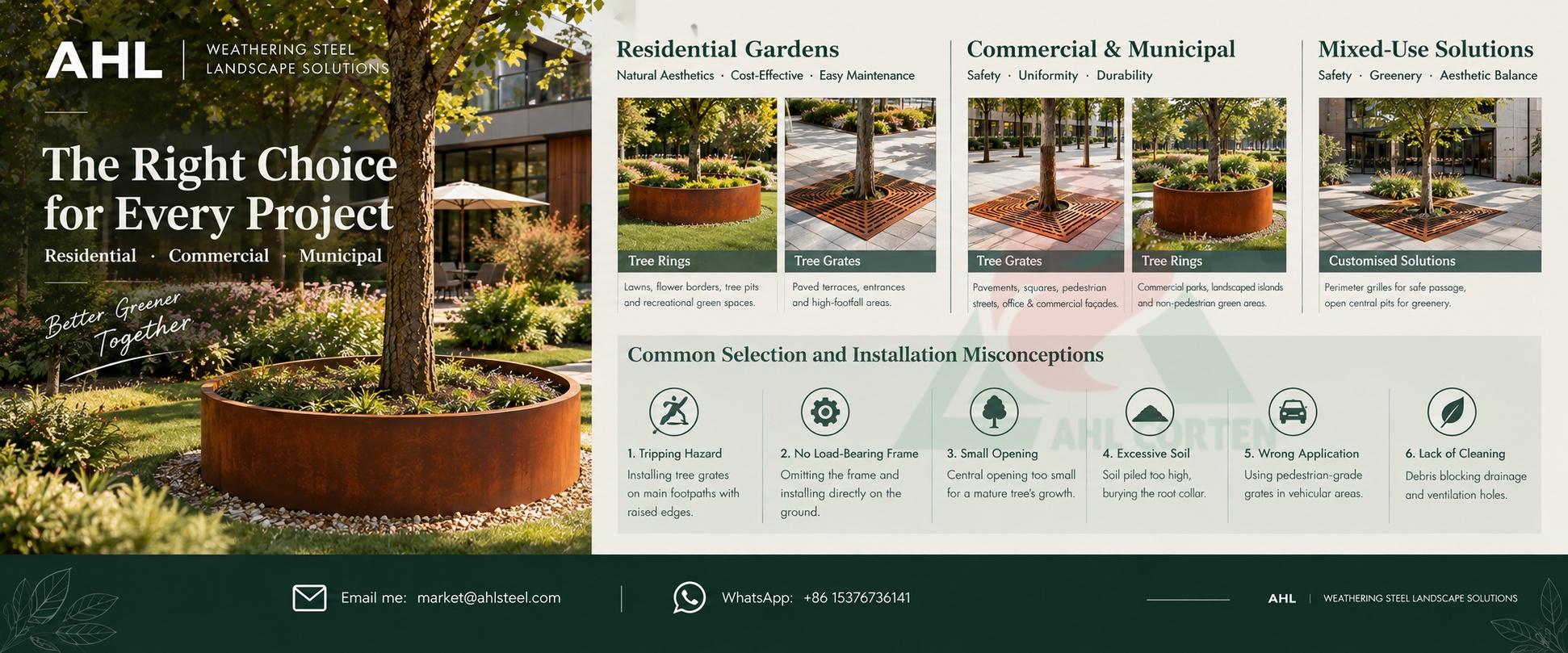

 Residential Gardens vs. Commercial and Municipal Settings

1. Landscape Selection for Private Residences

Lawns, flower borders, tree pits and recreational green spaces: prioritise weathering steel tree rings for their natural aesthetic appeal, cost-effectiveness, peace of mind and ease of maintenance.

Paved terraces, hard surfaces at entrances and tree pits with high footfall: prioritise small weathering steel tree grates to ensure a level and safe surface.

2. Landscape Selection for Commercial and Municipal Projects

Pavements, squares, pedestrian streets, and office/commercial façades: Standardize the use of weathering steel tree grates to meet engineering requirements for safety, uniformity and durability.
Landscaped lawns in commercial parks, landscaped islands and non-pedestrian green areas: Weathering steel tree surrounds may be selected to balance aesthetic appeal and cost.

3. Customised Solutions for Mixed-Use Scenarios

For mixed-use courtyards and demonstration area landscapes that combine pedestrian access with landscaping, customised mixed-use solutions may be adopted: perimeter grilles ensure safe passage, whilst open central tree pits preserve space for greenery, balancing safety with a natural aesthetic.

Common Selection and Installation Misconceptions in the Industry

Misconception 1: Installing tree grates on main footpaths where raised edges create a serious tripping hazard.
Misconception 2: Omitting the load-bearing frame for tree grates and installing them directly on the ground, which makes them highly prone to subsidence, wobbling and water accumulation in the long term.
Misconception 3: The central opening is too small, failing to allow sufficient space for the trunk of a mature tree to grow; long-term constriction leads to the tree’s death.
Misconception 4: The soil covering the tree pit is piled too high, burying the tree’s root collar and causing root rot, diseases and pest infestations.
Misconception 5: Using standard pedestrian-grade tree grates in vehicular areas, leading to deformation and breakage of the grating surface.
Misconception 6: Failure to clear debris from the gaps in the grating over time, blocking drainage and ventilation holes and hindering the growth of the tree’s root system.





Why Choose AHL Corten Steel Tree Surrounds and Tree Grates?

AHL has specialised in weathering steel landscape products for many years, offering a comprehensive range of tree protection solutions suitable for private gardens, commercial plazas and municipal streets.

Comprehensive product range: Includes integrated, split and modular tree surrounds, as well as square, round, custom-shaped and laser-engraved tree grates, with full customisation available.

Professional engineering customisation: Steel plate thickness, aperture patterns, anti-slip textures and weathered rust finishes can be adjusted to suit requirements, with bespoke CAD construction drawings provided.

Quality engineering standards: Municipal-grade load-bearing frames and expandable modular structures that withstand wind, rain, foot traffic and ageing, ensuring a long service life outdoors.

One-Stop Implementation Service: We provide end-to-end services including product selection, scheme design, bespoke manufacturing and installation guidance to ensure efficient project delivery.

Final Selection Summary and Quick Decision Checklist

1. Key Selection Guidelines

For soft landscaping and green spaces, choose tree surrounds for a natural, cost-effective and low-maintenance solution; for hard surfaces with high footfall, choose tree grates for safety, neatness and greater durability.

2. Quick Decision Checklist

For lawns, flower beds and low-traffic green spaces → Choose weathering steel tree guards
For paved surfaces, squares and high-traffic public areas → Choose weathering steel tree grates
Prioritise natural aesthetics, budget control and ease of daily maintenance → Choose tree guards
Require barrier-free access, compliance with municipal standards and long-term durability → Choose tree grates
Mixed-use scenarios balancing aesthetics and practicality → Customised mixed-solution packages
