When shopping for a corten BBQ grill, many users struggle with two key questions: Is a 3mm thickness sufficient? Is it worth spending more to upgrade to a 5mm grill body?

In fact, steel plate thickness is the key factor that determines the user experience, service life, and value for money of a weathering steel BBQ grill. The corten steel fire grill directly affects the unit’s heating speed, heat retention stability, resistance to deformation, and long-term operating costs.

Simply put, there is no single “best” thickness—only a choice that best suits the specific application. Lightweight, thin steel plates are suitable for occasional home barbecuing, while commercial, high-frequency use requires the stability provided by thicker steel plates.

As a professional custom manufacturer of weathering steel grills, AHL does not adopt a one-size-fits-all approach to thickness. We match different thicknesses of grill bodies and cooking plates based on usage scenarios, grill dimensions, and heating methods to balance heating efficiency, structural stability, and budget.





Quick Answer: Is 3mm or 5mm Better?

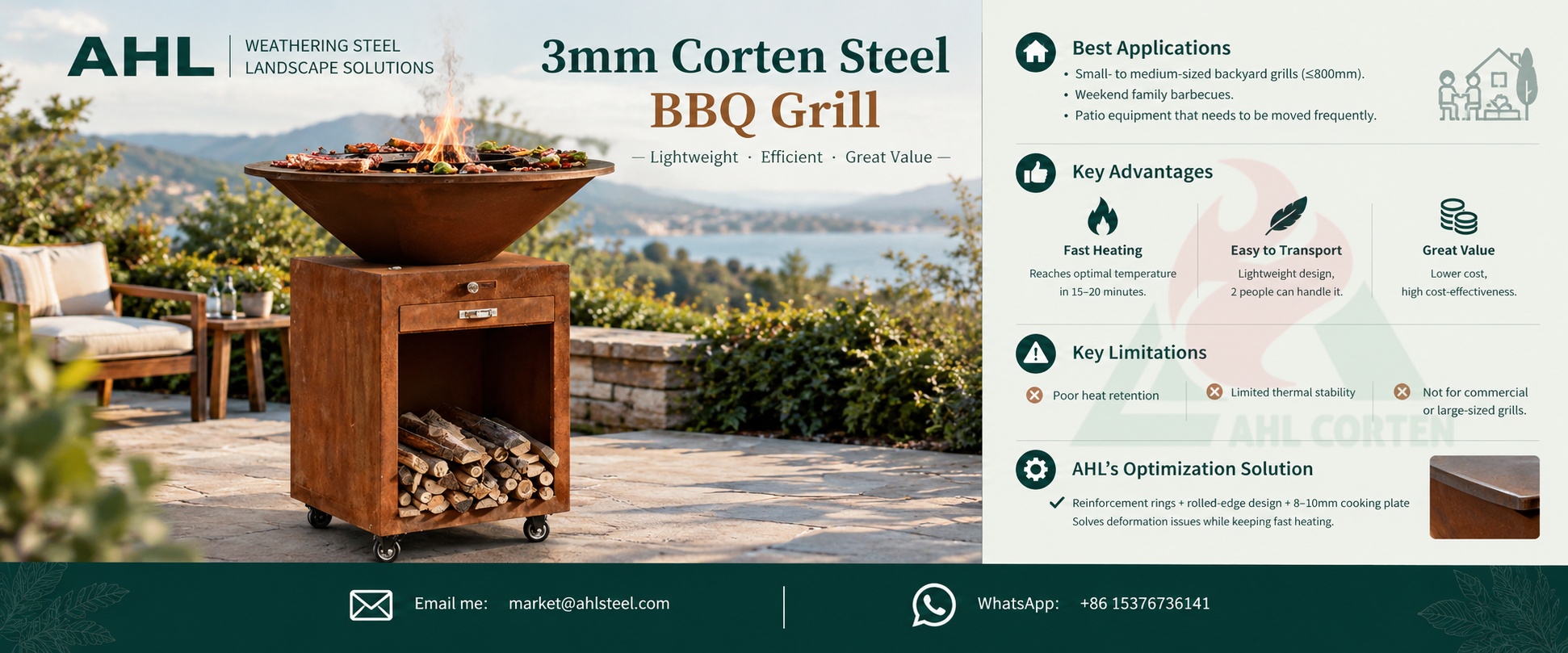

What Does 3mm Corten Steel Mean for a BBQ Grill?

1. Best Applications

The 3mm corten steel outdoor grill is designed for light weight and convenience, making it suitable for the vast majority of small- to medium-sized home barbecue needs.

Main applications: Small- to medium-sized backyard grills with a diameter of ≤800mm, casual weekend family barbecues, and outdoor patio equipment that needs to be moved frequently.

2. Advantages

• Fast heating: The steel plate has low thermal mass, allowing it to absorb and conduct heat quickly. It reaches the optimal cooking temperature in just 15–20 minutes, significantly reducing preheating time and fuel consumption.
• Easy to transport and install: The unit is lightweight, so just two people can handle transportation and assembly. No large lifting equipment is required, making it suitable for various backyard and patio settings.
• Outstanding Value for Money: With lower raw material and transportation costs, it is a cost-effective choice for entry-level weather-resistant steel grills for home use.

3. Limitations

• Poor Heat Retention: Heat dissipates quickly once the heat source weakens. Prolonged grilling requires frequent replenishment of firewood or charcoal, making temperature control more challenging.
• Limited Resistance to Thermal Deformation: Prolonged exposure to high temperatures and intense flames can easily generate thermal stress, leading to localized deformation and bulging over time.
• Not Suitable for Commercial Use or Large-Sized Grills: For grills with diameters exceeding 1,000 mm or for all-weather commercial use, 3mm steel plates cannot withstand the pressure of continuous thermal cycling.

4. AHL’s Exclusive Optimization Solution

To address the weakness of 3mm bbq grill bodies—their susceptibility to deformation—AHL has implemented structural reinforcements. By adding reinforcement rings and a rolled-edge design, the rigidity of the grill body is enhanced.
Combined with 8–10mm thickened carbon steel cooking plates, this solution completely resolves the issue of grill body deformation while retaining the advantage of rapid heating.

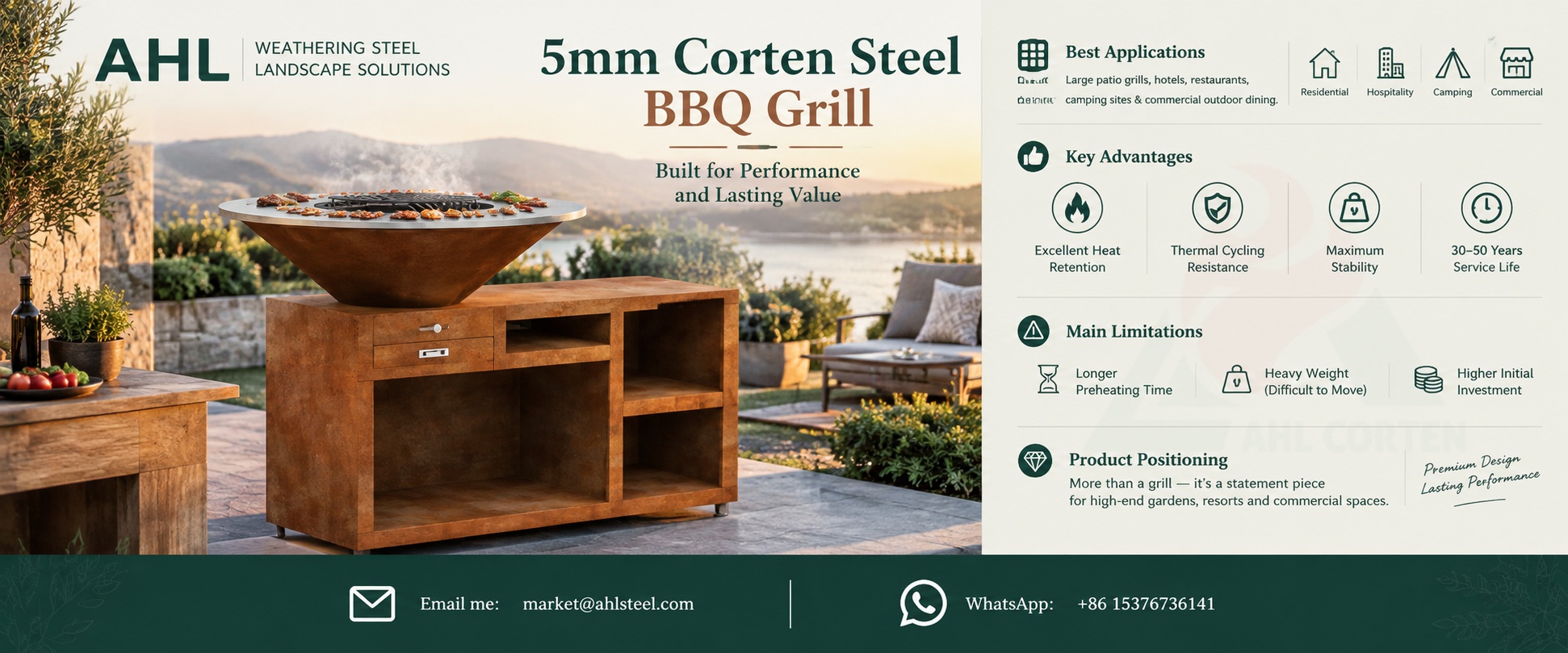

What Does 5mm Corten Steel Mean for a BBQ Grill?

1. Best Applications

The 5mm-thick steel plate is designed for stability, durability, and heavy-duty use, making it the top choice for high-end residential and commercial grilling.
Primary Applications: Large-sized patio grills (900–1200mm), hotel restaurants, camping sites, commercial outdoor dining, and permanent outdoor kitchens featuring continuous open-flame grilling in all weather conditions.

2. Advantages



• Superior Heat Retention and Temperature Stability: The thick steel plate acts as a natural “heat reservoir.” Even after adding cold firewood or placing a large amount of cold ingredients, the temperature remains stable without significant fluctuations.
• Resistant to Thermal Cycling Deformation: It can withstand high temperatures from open flames and repeated thermal cycling over the long term; the grill body and welds are resistant to bending, sagging, and cracking.
• Maximum Structural Stability: With greater weight and a lower center of gravity, it remains upright even when paired with heavy cooking grates, ensuring superior structural safety.
• Extremely Long Service Life: With proper maintenance, it can be used reliably for 30–50 years—far outlasting standard thin-walled grills—making it a true investment-grade outdoor appliance.

3. Limitations

• Longer Preheating Time: The steel plates have high thermal mass, requiring 30–40 minutes of preheating to reach a uniform high temperature, resulting in higher fuel consumption initially.
• Heavy Weight, Difficult to Move: The entire unit is heavy, making transportation and relocation difficult; it is primarily intended for use as a fixed installation.
• Higher Initial Investment: Higher costs for raw materials, processing, and transportation mean the initial purchase budget is higher than for 3mm models.

4. Product Positioning

AHL defines the 5mm corten steel fire grill as a core piece of high-end outdoor landscape equipment.
The corten plancha grill is not just a barbecue tool; it is also a garden decorative feature that combines industrial performance with a vintage aesthetic.
It is perfectly suited for high-end gardens, commercial campgrounds, and hotel outdoor settings, balancing practicality with aesthetic appeal.

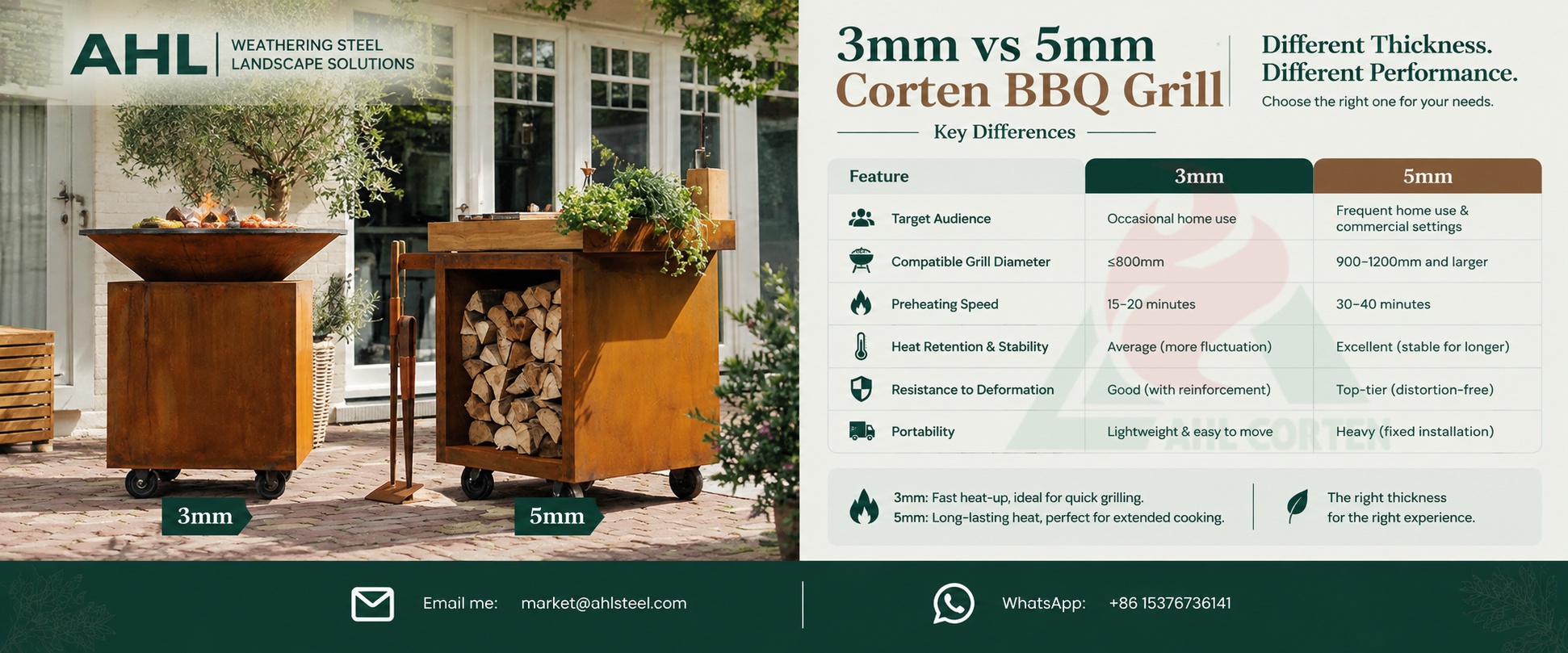

3mm vs. 5mm Corten BBQ Grill—Key Differences

Quickly identify the key differences between these two weathering steel BBQ grill models through an intuitive comparison of their specifications:

• Target Audience: The 3mm model is designed for occasional home use; the 5mm model is designed for frequent home use and commercial settings.
• Compatible Grill Diameter: The 3mm model is compatible with grills ≤800mm; the 5mm model is compatible with large grills ranging from 900–1200mm and larger.
• Preheating Speed: The 3mm model preheats quickly (15–20 minutes); the 5mm model preheats more slowly (30–40 minutes).
• Heat Retention and Temperature Stability: The 3mm model performs averagely, with significant temperature fluctuations; the 5mm model excels, maintaining stable temperatures over extended periods.
• Resistance to Deformation: The 3mm model performs well (requires structural reinforcement); the 5mm model is top-tier, remaining distortion-free even with long-term use.
• Portability: The 3mm model is lightweight and easy to move; the 5mm model is heavy and typically requires a fixed installation.

3mm vs 5mm: Heat Retention and Cooking Performance

1. Thermal Performance Characteristics of the 3mm Firebox

3mm steel plates have an extremely fast heat-up response; temperature changes are immediately controllable when adding or removing firewood or charcoal, making them suitable for short, rapid cooking sessions.

However, due to low thermal inertia, the temperature drops significantly when a large amount of cold ingredients is added, requiring frequent monitoring and replenishment during extended grilling sessions.

Best suited for small gatherings of 2–4 people, quick grilling of steaks, vegetables, and burgers, and ideal for light home use 1–3 times per week.

2. Thermal Performance Characteristics of the 5mm Grill Body

The 5mm-thick steel plate takes longer to preheat but has excellent heat retention, offering overall thermal stability far superior to that of thinner grill bodies.

During continuous cooking in multiple batches, extended slow-cooking, or smoking, the temperature remains consistently even and stable, eliminating the need for frequent fuel replenishment to control the temperature.

Suitable for large gatherings of 6–10 people, frequent entertaining, small-scale commercial catering, and all-day continuous grilling.

3. Fuel Efficiency Comparison Across Different Scenarios

• Short-term grilling (within 1 hour): The 3mm model is more fuel-efficient—it heats up quickly, requires no lengthy preheating, and consumes less energy.
• Long-term grilling (over 2 hours): The 5mm model is more energy-efficient; its strong heat retention capacity reduces the need for additional heat sources, resulting in lower overall energy consumption.

At the same time, outdoor wind conditions, grill size, wind-resistant design, and cooking plate thickness all affect actual thermal efficiency. In windy, open areas, the temperature-stabilizing advantage of the 5mm grill becomes even more pronounced.

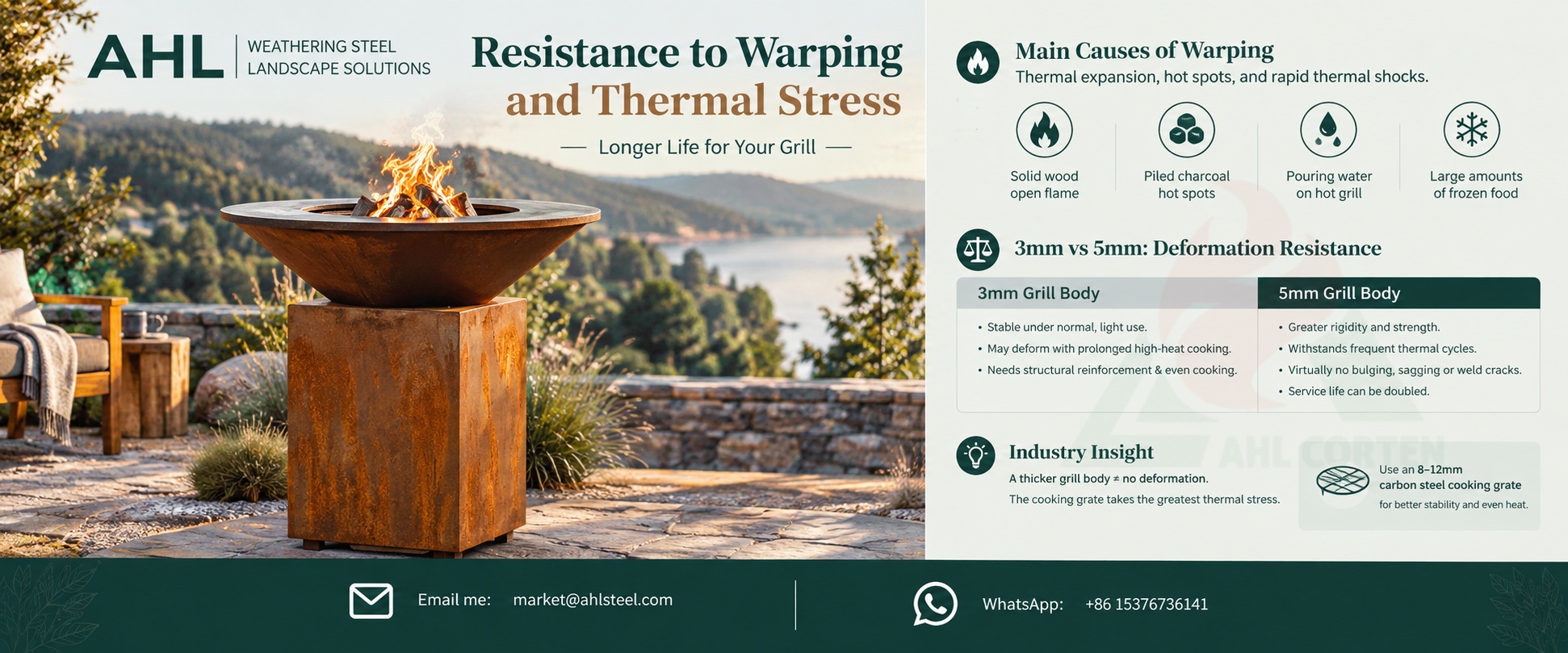

Resistance to Warping and Thermal Stress: Determines How Many Years the Grill Will Last

1. Core Causes of Grill Warping

Repeated thermal expansion and contraction of the steel plate, localized high-temperature hot spots, and rapid thermal shocks are the three primary causes of grill warping.
In particular, high-temperature open-flame burning of solid wood, localized overheating from piled charcoal, pouring water directly onto a hot grill, and placing large amounts of frozen food on the grill will all exacerbate stress-induced warping of the steel plate.

2. Comparison of Deformation Resistance Between the Two Thicknesses

The 3mm grill body is stable and durable under normal, light use, but prolonged high-heat cooking or all-day grilling can easily cause deformation. Its lifespan must be extended through structural reinforcement and even distribution of ingredients.
A 5mm grill body offers greater rigidity, withstanding frequent thermal cycles and heavy-duty combustion. It is virtually immune to bulging, sagging, or weld seam cracking, effectively doubling its service life.

3. Correcting Key Industry Misconceptions

Many users mistakenly believe that “a thicker grill body equals no deformation,” but in reality, the cooking grate is the part subjected to the greatest thermal stress.
Whether the grill body is a 3mm or 5mm outdoor barbecue grill, it is recommended to use an 8–12mm thick carbon steel cooking grate to truly eliminate issues such as surface deformation and uneven heat distribution.






Body Thickness vs Cooking Plate Thickness

Weathering steel stove bodies and cooking plates serve completely different functions and cannot be designed using the same thickness standards.
Weathering steel stove bodies are designed primarily for outdoor weather resistance, structural support, and aesthetic appeal, so they do not need to be excessively thick. Carbon steel cooking plates are designed primarily for high-temperature resistance, resistance to deformation, and even heat distribution, so they must be made thicker.

• Standard Home Edition: 3–4 mm stove body + 8–10 mm carbon steel cooking plate—lightweight, easy to use, and great value for money.
• High-End Home/Light Commercial Version: 4–5 mm body + 10 mm carbon steel cooking plate—balancing stability and aesthetics.

• Full Commercial Heavy-Duty Version: 5–8 mm body + 10–12 mm thickened cooking plate—maintains its shape under high-intensity, all-weather use.

Recommended Specification Matrix

Choose Thickness Based on Grill Size

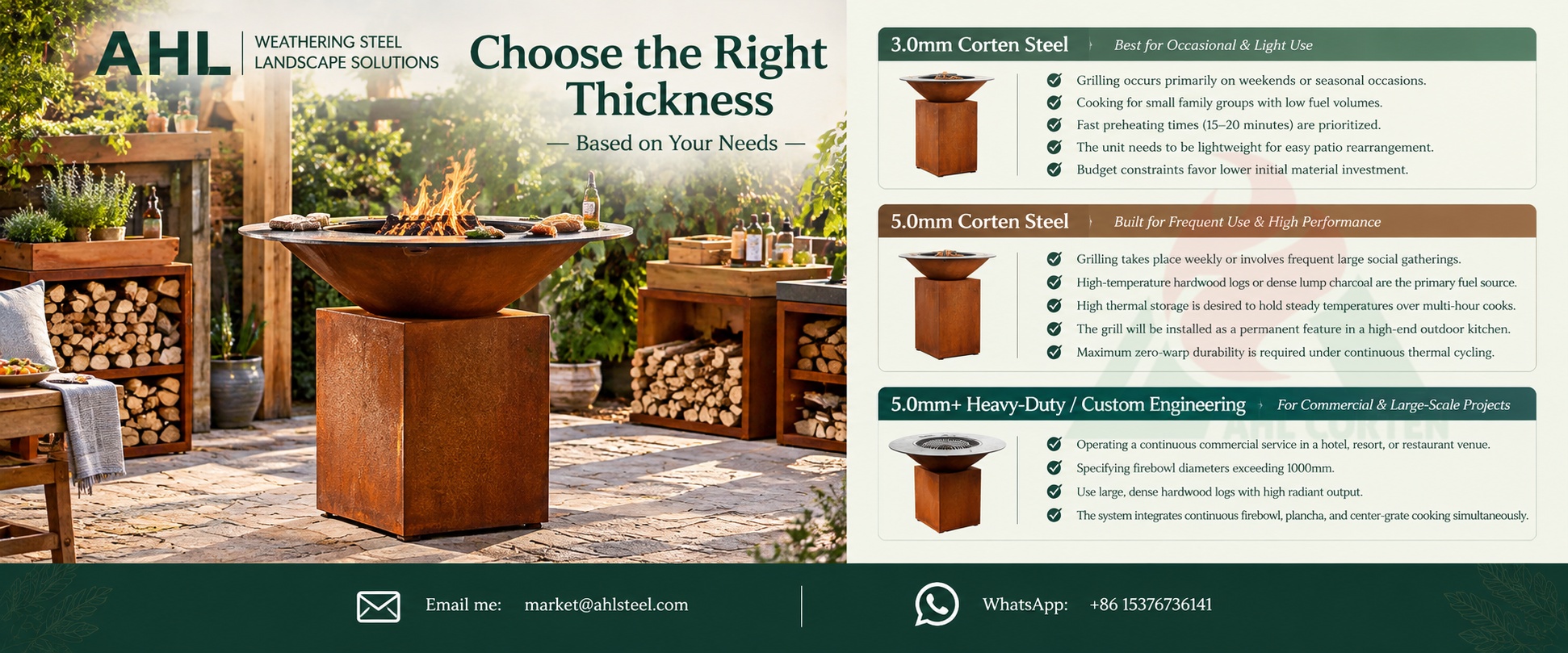

Choose Thickness Based on Frequency of Use

1. Select 3.0mm Corten Steel If:

Grilling occurs primarily on weekends or seasonal occasions.
Cooking for small family groups with low fuel volumes.
Fast preheating times (15-20 minutes) are prioritized.
The unit needs to be lightweight for easy patio rearrangement.
Budget constraints favor lower initial material investment.

2. Select 5.0mm Corten Steel If:

Grilling takes place weekly or involves frequent large social gatherings.
High-temperature hardwood logs or dense lump charcoal are the primary fuel source.
High thermal storage is desired to hold steady temperatures over multi-hour cooks.
The grill will be installed as a permanent feature in a high-end outdoor kitchen.
Maximum zero-warp durability is required under continuous thermal cycling.

3. Select 5.0mm+ Heavy-Duty / Custom Engineering If:

Operating a continuous commercial service in a hotel, resort, or restaurant venue.
Specifying firebowl diameters exceeding 1000mm.
Use large, dense hardwood logs with high radiant output.
The system integrates continuous firebowl, plancha, and center-grate cooking simultaneously.

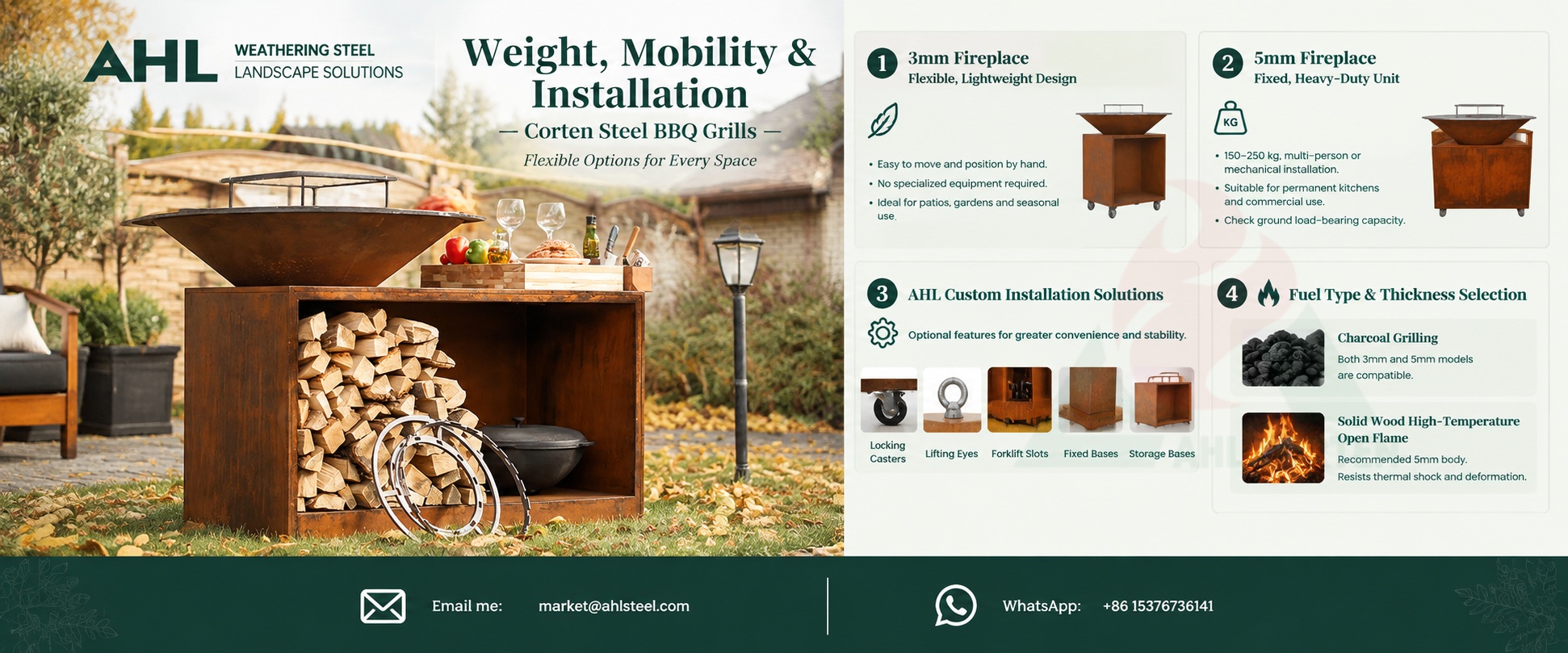

Weight, Mobility, and Installation of Corten Steel BBQ Grills

1. 3mm Fireplace: Flexible, Lightweight Design

The unit is lightweight overall and can be moved and positioned by hand without the need for specialized equipment. It is suitable for patios, gardens, and other settings where seasonal storage or frequent repositioning is required.

2. 5mm Fireplace: Fixed, Heavy-Duty Unit

The total weight of the grill can reach 150–250 kg, requiring multiple people or mechanical assistance for installation. Suitable for permanent outdoor kitchens and commercial locations; verify the ground’s load-bearing capacity before installation.

3. AHL Custom Installation Solutions

To address the challenges of moving heavy grills, AHL offers optional locking casters, lifting eyes, forklift slots, fixed bases, and storage bases, balancing stability with installation convenience.

4. Fuel Type and Thickness Selection

Charcoal Grilling: Both 3mm and 5mm grill bodies are compatible and meet standard household grilling needs.
Solid Wood High-Temperature Open Flame: The 5mm grill body is recommended. Solid wood flames reach high temperatures and cause intense thermal shock; thicker steel plates effectively resist thermal deformation.

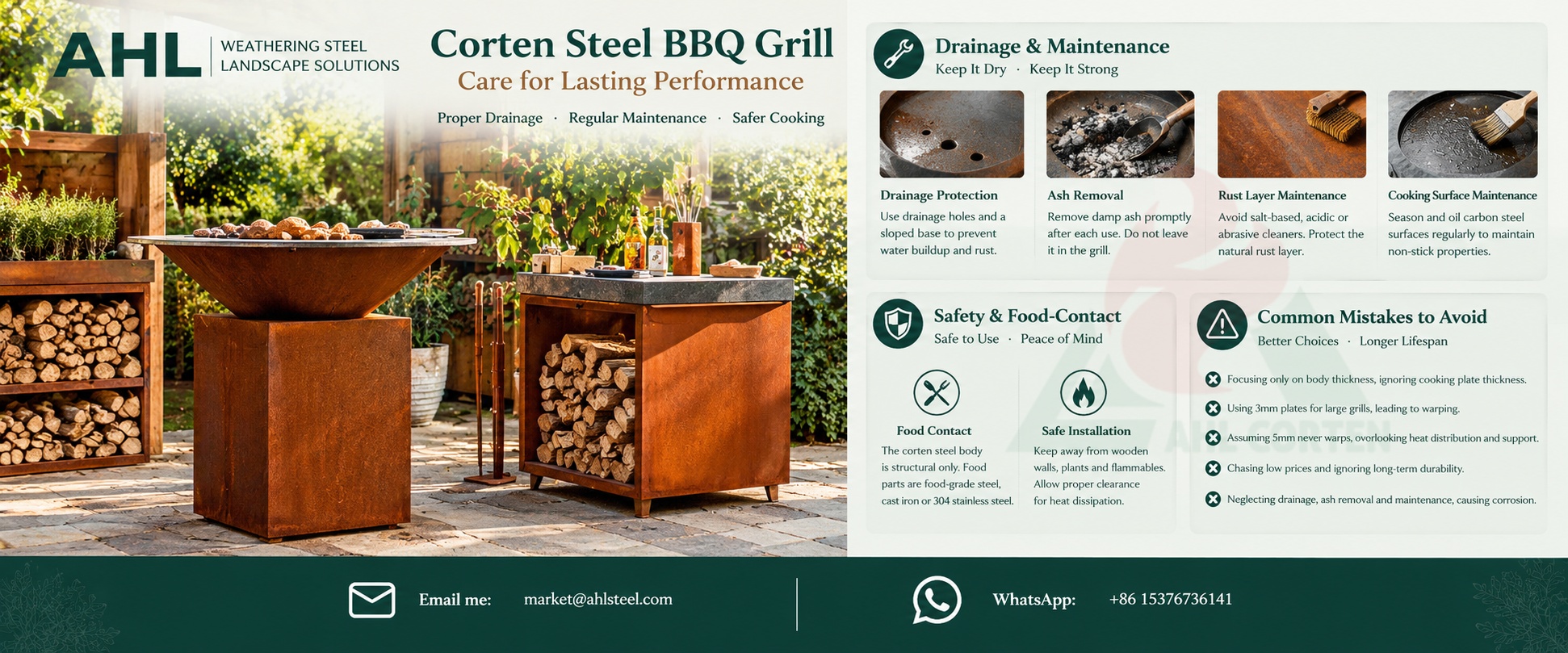

Corten Steel BBQ Grill Drainage and Maintenance

The durability of a weathering steel grill depends equally on the thickness of the material and proper maintenance.

• Drainage Protection: The grill must be equipped with drainage holes and a sloped base to prevent rainwater and standing water from accumulating, thereby avoiding rust, spots, and perforations in the steel.
• Ash Removal: Damp ash is highly corrosive and must be removed promptly after each use once the grill has cooled; do not leave it in the grill for extended periods.
• Rust Layer Maintenance: Avoid using salt-based, acidic, or highly abrasive cleaners to protect the weathering steel’s natural passivated rust layer, maintaining its stable appearance and corrosion resistance.
• Cooking Surface Maintenance: Carbon steel cooking surfaces must be seasoned and oiled regularly to maintain their non-stick properties and prevent rusting and deterioration.

Safety and Food-Contact Considerations

The weathering steel stove body serves solely as a structural and aesthetic material and does not come into direct contact with food.

All parts that come into contact with food are made of food-grade carbon steel, cast iron, or 304 stainless steel, ensuring high-temperature safety and preventing the leaching of harmful substances.

During installation, keep the stove away from wooden walls, houseplants, and flammable debris. Allow sufficient clearance for heat dissipation to avoid safety hazards from open flames and hot air.

Common Mistakes When Choosing Grill Thickness

Focusing solely on the grill body thickness while ignoring the cooking plate thickness can lead to heat-induced warping and poor cooking results.
Using 3mm-thick steel plates for large-sized grill bodies makes them highly prone to warping and becoming unusable after prolonged exposure to high temperatures.
Mistakenly assuming that a 5mm grill body will never warp, while overlooking issues such as uneven heat distribution and the lack of a supportive structure.
Focusing solely on low prices while ignoring long-term durability, resulting in higher repair and replacement costs down the line.
Neglecting drainage, ash removal, and maintenance, leading to corrosion of the grill body and a significantly shortened lifespan.





Why Choose AHL Corten Steel BBQ Grills?

AHL does not simply stack thicknesses; instead, we engineer precise combinations tailored to specific applications.

• Comprehensive product line covering all thicknesses: 3–8 mm custom-made grill bodies and 8–12 mm heavy-duty cooking plates, suitable for all residential and commercial scenarios.
• One-stop customization: Dimensions, structure, casters, bases, logos, and matching landscape components can all be personalized.
• Integrated landscape design: Can be paired with weathering steel flower boxes, screens, water features, and railings from the same series to create a unified outdoor courtyard style.

• Core Advantages: Balances heating speed, heat retention, structural strength, and budget, while ensuring aesthetic appeal, practicality, and long-term durability.



Decision Guide: Which One Should You Buy?

Frequently Asked Questions (FAQ)：Corten BBQ Grill

Q: Is a 3mm Weathering Steel Grill Sufficient?

Yes, it’s sufficient for small to medium-sized grills and occasional home use. For large-scale, high-frequency commercial applications, we recommend upgrading to a 4–5mm thickness.

Q: What are the Key Improvements of 5mm Over 3mm?

Stronger heat retention and temperature stability, zero thermal deformation, and a longer service life—making it an investment-grade choice for long-term use.

Q: What Is the Optimal Thickness Combination for a Home Barbecue Grill?

A 4–5mm grill body paired with an 8–10mm carbon steel cooking plate is the ideal combination for home use.

Q: Is Weathering Steel Safe for Food Contact?

Yes, it is safe. All parts that come into contact with food are made of specialized food-grade materials; the weathering steel is used solely as an exterior structural component and does not come into direct contact with food.

Choosing the Right BBQ Grill Thickness for Your Outdoor Kitchen

Not sure whether 3mm or 5mm corten steel is right for your BBQ grill? AHL can recommend the ideal body thickness, cooking plate, firebox, diameter, base, drainage system, and accessories based on your cooking frequency, fuel type, landscape, and project requirements.
